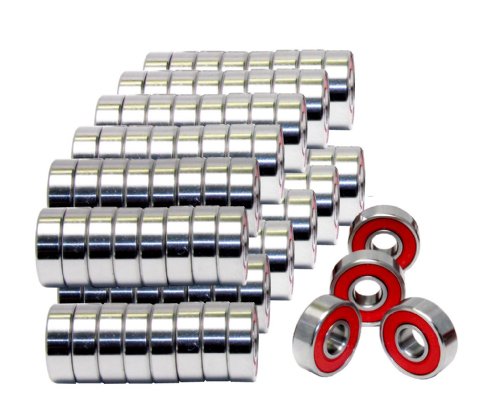

608-2RS Skateboard Bearing, Red, 8x22x7, Sealed, (Pack of 100)

This 608-2RS miniature radial ball bearing has red double seals and a nylon cage, and conforms to the ABEC 1 precision standard. This light duty bearing has an 8 mm bore diameter, a 22 mm outside diameter, and a 7 mm width. Its precision is rated at ABEC 1 by the Annular Bearings Engineers Committee (ABEC), allowing higher speeds and creating lower friction than less-precise ball bearings, and its radial internal clearance is C3 for radial slack between the inner and outer rings is greater than CN (normal) to compensate for thermal expansion. This bearing is made of ASTM International 52100 steel and heat treated to increase hardness for optimum wear resistance. Its deep ball grooves in both races support high radial and axial loads, its straight bore fits conventional cylindrical shafts, and its nylon cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. Removable single lip contact seals on both sides protect against contaminants and retain lubrication applied at manufacture. This ball bearing is suitable for use in skate boarding, inline skating, and other skating applications.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Product Features

• Single-row radial ball bearing for applications that support radial and axial loads
• Conforms to the ABEC 1 precision standard for performance within a narrow range of variation
• Through-hardened 52100 bearing quality steel for optimum wear resistance
• Nylon cage evenly spaces balls for reduced friction, vibration, and noise
• Removable single lip contact seals on both sides to protect against contaminants and retain lubrication
